Rugged Displays
15.6"
SMART
Product Information

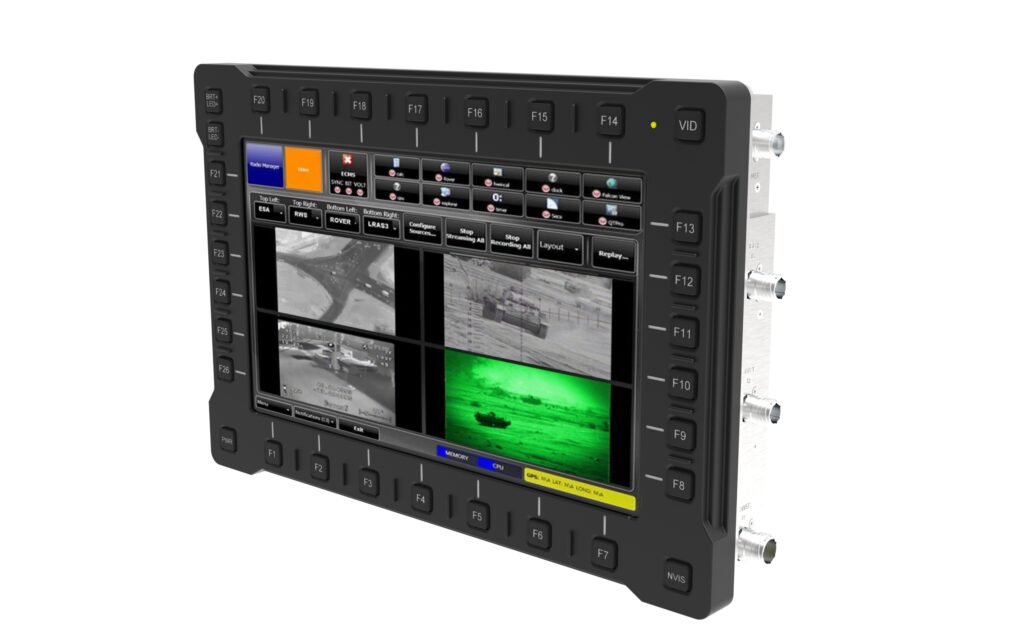

Cevians' 15.6" rugged display - SMART, designed with IPS technology, excels in both performance and versatility. Its touchscreen and MMI with NVISable LEDs offer precise control, while the high resolution of 1920x1080 ensures clear visuals. This display integrates essential components like power supply systems, signal conditioning, and EMI protections, supporting a wide range of video interfaces. Built to MIL-STD-810 and MIL-STD-461 standards, it withstands extreme conditions with an IP67 rating and operates from -40°C to +55°C.
Product Specifications
LCD technology
IPS
Resolution
1920x1080
Aspect Ratio
16:9
Orientation
Landscape
Viewing angle
85/85/85/85
Day mode Brightness
1000nits @ 17W
NVIS mode brightness
0.1 - 15 fL
Sunlight readable features
High-bright, Contrast-enhanced touchscreen, Anti-reflective, Anti-glare
Operating Temperature
-40°C to +55°C
IP rating
IP67
Touch screen technology
Microglass Resistive Multi-Touch
EMI
ITO
Heater
Optional
Internal sensors
Optional
Electronics
Video driver
BL driver
Touch controller
Keypad electronics
Quad-core i7 2.0Ghz/2.8Ghz CPU
Intel HD 530 Gen 9 embedded high-performance video
32 GBDDR4 SDRAM
500 GB SSD Storage (SATA)
2x GigE ports (1 standard, 2 optional)
2x SUB 2.0 ports
3x SUB 3.0 ports (optional)
Optional: Audio, Serial, GPIOs, Analog, etc.
Impact resistance
20lb continuous load, 0.5m ball drop, 0.5m wrench impact, 1,500N boot kick
Input power
MIL-STD-1275
Dimensions
16.0" x 10.8" x 2.8"
Mounting
VESA 100
HMI
1x Switch
32x Buttons
Touch Interface
USB
Video interface
HDMI
DP
DVI
VGA
Communication interface
I2C
USB
RS232
MIL-Spec connectors
Yes
