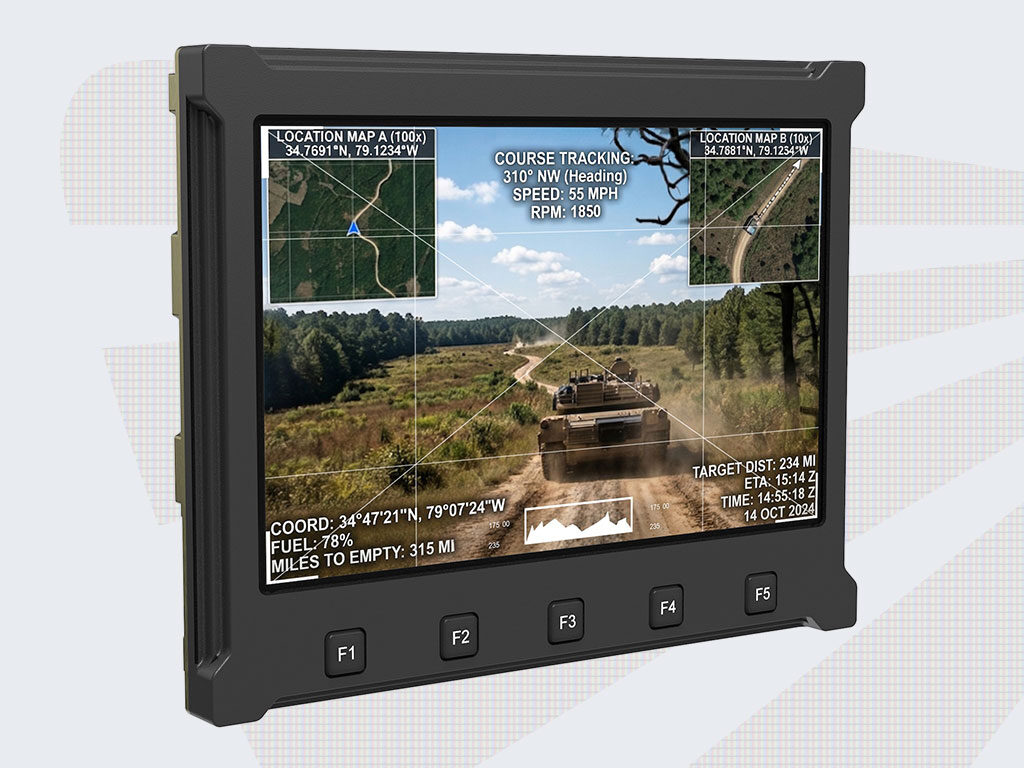

Rugged
Displays
Scroll down
The demand for high-reliability of rugged displays and increased affordability has positioned Cevians as a prime technology provider. With vertically integrated capabilities from material sciences, optical products, and displays, we actively contribute to the growth of a range of market segments such as military, aerospace, industrial, air traffic control, and simulation systems.
Design Flexibility
Cevians rugged systems typically include power supply systems, signal conditioning, and electromagnetic interference protections, multi-standard video interfaces, touch controllers, embedded display controls, LED backlight drivers, heater controls, and any non-mission-critical hardware and firmware.
Unparalleled Capabilities
As the only vertically integrated supplier of rugged displays, we reduce product time to market without compromising on performance. We design and manufacture all core elements and efficiently perform the electromechanical assemblies of subsystems.
Technical Summary
- MIL-STD-810 for military ground and airborne applications, high vibration, and 50K foot high altitude
- Wide storage temperature, -55 to +85, no forced convection
- MIL-STD-704
- MIL-STD-461
- IP67
- Versatile mounting options, including Vesa mount, front and side mounting points
- Oleophobic touch surfaces
- Low latency
- Multiple video interfaces: ARINC-818, DP, DVI, HDMI, 3G-SDI
- High brightness >350 ftL
- Low capability dimming down to 0.1 ftL
- Wide viewing angle
- NVIS compliant to MIL-STD-3009
- BlackBackground compliant
- Minimal single point of failure with integrated redundancy
- MTBF MIL-HBK-217F plus of 30,000 hours
- Our rugged displays fall under the jurisdiction of the U.S. Department of Commerce’s Bureau of Industry and Security (BIS) Export Administration Regulations (EAR).
Rugged Displays
7"
LCD technology
IPS
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
ITO coated glass and heater electronics
Product Design Orientation
landscape
Sunlight readable features
high bright, contrast enhanced touch, AR/AG coated
Touch screen technology
Microglass Resistive 5 wire
Human Machine interface
(MMI front bezel with buttons/encoders)
7 button membrane NVISable LEDs
Internal Sensors
thermal and optical sensor
Aspect Ratio
wide
Resolution
1920x1080
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, 3G-SDI optional
Mounting
side or 100x100 VESA
Dimesnions
7.5" x 5.2" x 2.5"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
20 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
900 nits
Day mode backlight power (W)
11.8 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-40°C to +70°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, VGA
°C
8"
LCD technology
IPS
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
ITO coated glass and heater electronics
Product Design Orientation
portrait
Sunlight readable features
high bright, AR/AG coated
Touch screen technology
optional
Human Machine interface
(MMI front bezel with buttons/encoders)
7 buttons, rocker switch, two encoders
Internal Sensors
thermal, optical and orientation sensor
Aspect Ratio
wide
Resolution
800x480
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, 3G-SDI optional
Mounting
panel flange mount
Dimesnions
9.7" x 5.2" x 2.4"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
20 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
1100 nits
Day mode backlight power (W)
11.7 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-40°C to +70°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, VGA
10.4"
LCD technology
IPS
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
ITO coated glass and heater electronics
Product Design Orientation
portrait and landscape
Sunlight readable features
high bright, contrast enhanced touch, AR/AG coated
Touch screen technology
Microglass Resistive 8 wire
Human Machine interface
(MMI front bezel with buttons/encoders)
7 button membrane NVISable LEDs
or 16 buttons with NVISable LEDs
Internal Sensors
thermal and optical sensor
Aspect Ratio
4:3
Resolution
1024x768
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP, 3G-SDI optional
Mounting
side or 100x100 VESA
Dimesnions
11.4" x 7.7" x 2.4"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
40 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
750 nits
Day mode backlight power (W)
8.6 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-40°C to +70°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, VGA
12.1"
LCD technology
TN
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
ITO coated glass and heater electronics
Product Design Orientation
landscape
Sunlight readable features
high bright,contrast enhanced touch, AR/AG coated
Touch screen technology
Microglass Resistive 8 wire
Human Machine interface
(MMI front bezel with buttons/encoders)
power, brightness, 10 additional keys, NVISable LEDs
or 38 buttons with NVISable LEDs
Internal Sensors
thermal and optical sensor
Aspect Ratio
4:3
Resolution
1024x768
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP, 3G-SDI optional
Mounting
side or 100x100 VESA
Dimesnions
12.8" x 9.8" x 2.5"
Viewing angle
80, 80, 80, 60
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
40 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
950 nits
Day mode backlight power (W)
9.2 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-40°C to +70°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, VGA
12.1" W
LCD technology
IPS
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
ITO coated glass and heater electronics
Product Design Orientation
landscape
Sunlight readable features
high bright, contrast enhanced touch, AR/AG coated
Touch screen technology
Microglass Resistive 4 wire
Human Machine interface
(MMI front bezel with buttons/encoders)
31 buttons, rotary encoder
Internal Sensors
thermal sensor
Aspect Ratio
wide
Resolution
1280x800
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, 3G-SDI optional
Mounting
100x100 VESA
Dimesnions
14.0" x 10.9" x 2.1"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
40 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
1000 nit
Day mode backlight power (W)
11.9 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-40°C to +70°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, VGA
14.1"
LCD technology
TN
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
ITO coated glass and heater electronics
Product Design Orientation
landscape
Sunlight readable features
high bright, contrast enhanced touch, AR/AG coated
Touch screen technology
Microglass Resistive 5 wire
Human Machine interface
(MMI front bezel with buttons/encoders)
power, brightness, 10 additional keys, NVISable LEDs
Internal Sensors
thermal and optical sensor
Aspect Ratio
wide
Resolution
1280x800
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, 3G-SDI optional
Mounting
side or 100x100 VESA
Dimesnions
13.8" x 10.8" x 2.8"
Viewing angle
80, 80, 80, 60
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
40 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
1100 nits
Day mode backlight power (W)
18 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-40°C to +70°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, VGA
15.0"
LCD technology
IPS
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
optional
Product Design Orientation
landscape
Sunlight readable features
high bright, contrast enhanced touch, AR/AG coated
Touch screen technology
Microglass Resistive 5 wire
Human Machine interface
(MMI front bezel with buttons/encoders)
11 buttons, NVISable LEDs
Internal Sensors
thermal and optical sensor
Aspect Ratio
4:3
Resolution
1600x1200
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP, 3G-SDI optional
Mounting
flange panel mount
Dimesnions
14.3" x 11.9" x 2.4"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
60 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
1000 nits
Day mode backlight power (W)
17 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-30°C to +70°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, DP
15.6"
LCD technology
IPS
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
optional
Product Design Orientation
landscape
Sunlight readable features
high bright, contrast enhanced touch, AR/AG coated
Touch screen technology
PCAP
Human Machine interface
(MMI front bezel with buttons/encoders)
6 buttons, rotary switch, encoder, NVISable LEDs
Internal Sensors
thermal sensors
Aspect Ratio
wide
Resolution
1920x1080
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP optional 3G-SDI optional
Mounting
100x100 VESA
Dimesnions
16.0" x 10.8" x 2.8"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
60 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
1000 nits
Day mode backlight power (W)
17 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-30°C to +70°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, VGA
17.0"
LCD technology
IPS
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
optional
Product Design Orientation
landscape
Sunlight readable features
high bright, contrast enhanced touch, AR/AG coated
Touch screen technology
Microglass Resistive 5 wire
Human Machine interface
(MMI front bezel with buttons/encoders)
11 buttons, NVISable LEDs
Internal Sensors
thermal and optical sensor
Aspect Ratio
4:3
Resolution
1280x1024
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP, 3G-SDI optional
Mounting
flange panel mount
Dimesnions
15.7" x 13.3" x 2.4"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
60 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
1000 nits
Day mode backlight power (W)
24 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-30°C to +70°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, DP
17.3"
LCD technology
TN
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
ITO coated glass and heater electronics
Product Design Orientation
landscape
Sunlight readable features
high bright, contrast enhanced touch, AR/AG coated
Touch screen technology
Microglass Resistive 5 wire
Human Machine interface
(MMI front bezel with buttons/encoders)
power, brightness, 10 additional keys, NVISable LEDs
Internal Sensors
thermal and optical sensor
Aspect Ratio
wide
Resolution
1920x1080
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP optional, 3G-SDI optional
Mounting
side or 100x100 VESA
Dimesnions
16.9" x 11.8" x 2.8"
Viewing angle
80, 80, 80, 60
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
60 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
1000 nits
Day mode backlight power (W)
25 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-40°C to +70°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, VGA
21.3"
LCD technology
TN
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
optional
Product Design Orientation
landscape
Sunlight readable features
400 nits, resistive
highbright AG?
Touch screen technology
Microglass Resistive X wire
Human Machine interface
(MMI front bezel with buttons/encoders)
6 buttons
Internal Sensors
optional
Aspect Ratio
wide
Resolution
1600 x 1200
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP optional, 3G-SDI optional
Mounting
100x100 VESA
Dimesnions
22.0" x 16.0" x 1.9"
Viewing angle
80, 80, 80, 60
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
60 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
400 nits
Day mode backlight power (W)
21 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-20°C to +55°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, VGA
21.5"
LCD technology
TN or IPS
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
ITO coated glass and heater electronics
Product Design Orientation
landscape
Sunlight readable features
high bright, contrast enhanced touch, AR/AG coated
Touch screen technology
Microglass Resistive 5 wire
Human Machine interface
(MMI front bezel with buttons/encoders)
power, brightness, 10 additional keys, NVISable LEDs
Internal Sensors
thermal and optical sensor
Aspect Ratio
wide
Resolution
1920x1080
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP optional, 3G-SDI optional
Mounting
side or 100x100 VESA
Dimesnions
20.8" x 13.9" x 2.8"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
60 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
1000 nits
Day mode backlight power (W)
32 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-40°C to +70°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, VGA
23.8"
LCD technology
IPS
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
optional
Product Design Orientation
landscape
Sunlight readable features
300 nits, PCAP
highbright AG?
Touch screen technology
PCAP
Human Machine interface
(MMI front bezel with buttons/encoders)
6 buttons
Internal Sensors
optional
Aspect Ratio
wide
Resolution
3840x2160
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP, 3G-SDI optional
Mounting
100x100 VESA
Dimesnions
22.6" x 13.9" x 2.7"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
60 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
800 nits
Day mode backlight power (W)
46 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-20°C to +55°C
Communication interface
I2C, USB, RS 232,
ethernet
MIL-SPEC D38999 connectors
Power, DVI, DP
24"
LCD technology
IPS
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
optional
Product Design Orientation
portrait or landscape
Sunlight readable features
high bright, AR/AG coated
Touch screen technology
PCAP
Human Machine interface
(MMI front bezel with buttons/encoders)
6 buttons
Internal Sensors
thermal
Aspect Ratio
wide
Resolution
1920x1080
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP, 3G-SDI optional
Mounting
100x100 or 200x200 VESA
Dimesnions
22.7" x 13.5" x2.8"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
1275E or 704 12-32V DC
Impact resistance
60 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
270 nits
Day mode backlight power (W)
32 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-20°C to +55°C
Communication interface
I2C, USB, RS 232
MIL-SPEC D38999 connectors
Power, DVI, VGA
24"
LCD technology
IPS
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
optional
Product Design Orientation
portrait or landscape
Sunlight readable features
high bright, AR/AG coated
Touch screen technology
PCAP
Human Machine interface
(MMI front bezel with buttons/encoders)
6 buttons, one rotary encoder
Internal Sensors
optical sensor
Aspect Ratio
wide
Resolution
1920x1200
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP, 3G-SDI optional
Mounting
100x100 or 200x200 VESA
Dimesnions
22.5" x 15.9" x 3.3"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
100-240 V AC
Impact resistance
60 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
800 nits
Day mode backlight power (W)
41 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-20°C to +55°C
Communication interface
I2C, USB, RS 232,
ethernet
MIL-SPEC D38999 connectors
Power, DVI, DP
28"
LCD technology
IPS
EMI Shielding
ITO coated glass and conductive gaskets
Heater
optional
Product Design Orientation
N/A
Sunlight readable features
high bright
Touch screen technology
PCAP optional
Human Machine interface
(MMI front bezel with buttons/encoders)
6 buttons
Internal Sensors
optical sensor
Aspect Ratio
1:1
Resolution
2048X2048
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP, 3G-SDI optional
Mounting
100x100 or 200x200 VESA
Dimesnions
22.8" x 22.9" x 2.7"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
100-240 V AC
Impact resistance
60 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
500 nits
Day mode backlight power (W)
30 W
NVIS mode brightness (fL)
optional
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-20°C to +55°C
Communication interface
I2C, USB, RS 232,
ethernet
MIL-SPEC D38999 connectors
Power, DVI, DP
32"
LCD technology
IPS
EMI Shielding
ITO coated glass and conductive gaskets
MIL-STD-461 filtering electronics
Heater
optional
Product Design Orientation
landscape
Sunlight readable features
high bright, AR/AG coated
Touch screen technology
PCAP
Human Machine interface
(MMI front bezel with buttons/encoders)
8 buttons
Internal Sensors
optional
Aspect Ratio
wide
Resolution
3820x2160
Touch Interface
USB/serial
Video interface
VGA, HDMI, DVI, DP, 3G-SDI optional
Mounting
100x100 or 200x200 VESA
Dimesnions
30.3" x 20.2" X 2.7"
Viewing angle
85, 85, 85, 85
IP rating
IP67
Input power
100-240 V AC
Impact resistance
60 lb continuous load,
0.5 M ball drop, 0.5M wrench impact, 1500N boot kick
Day mode Brightness
800 nits
Day mode backlight power (W)
50 W
NVIS mode brightness (fL)
0.1 - 15 fL
Electronics
backlight and keypad driving electronics, touch controller, video driver, communication
Operating Temperature
-20°C to +55°C
Communication interface
I2C, USB, RS 232,
ethernet
MIL-SPEC D38999 connectors
Power, DVI, DP
