Rugged Displays
12.1"
SMART
Product Information

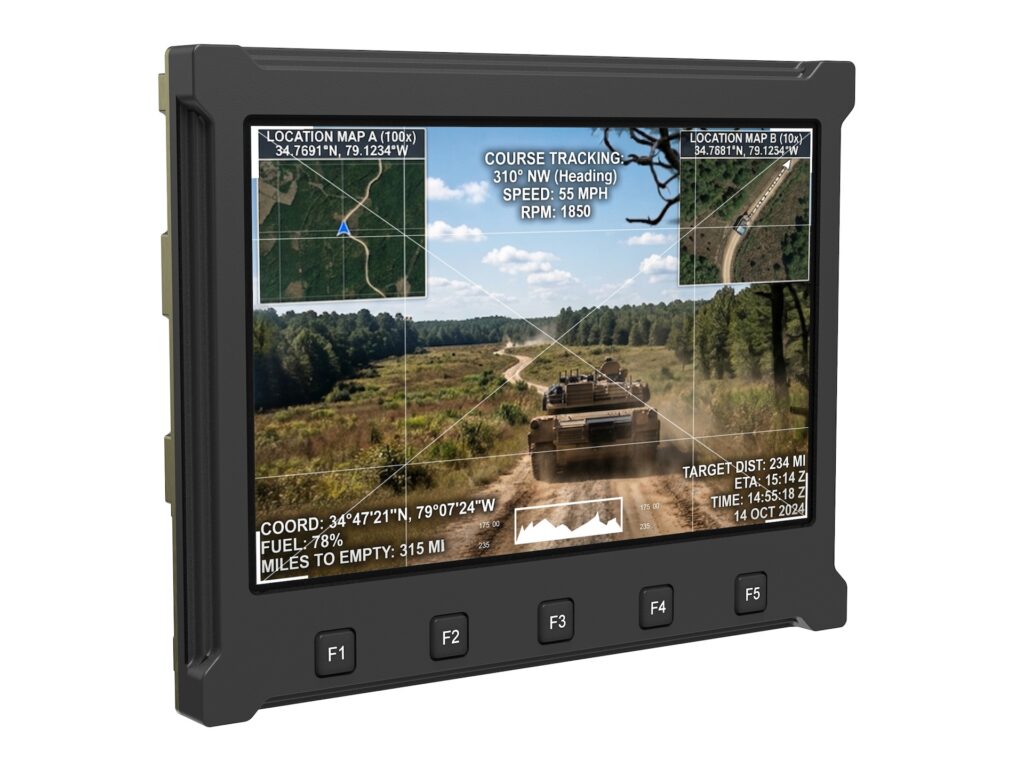

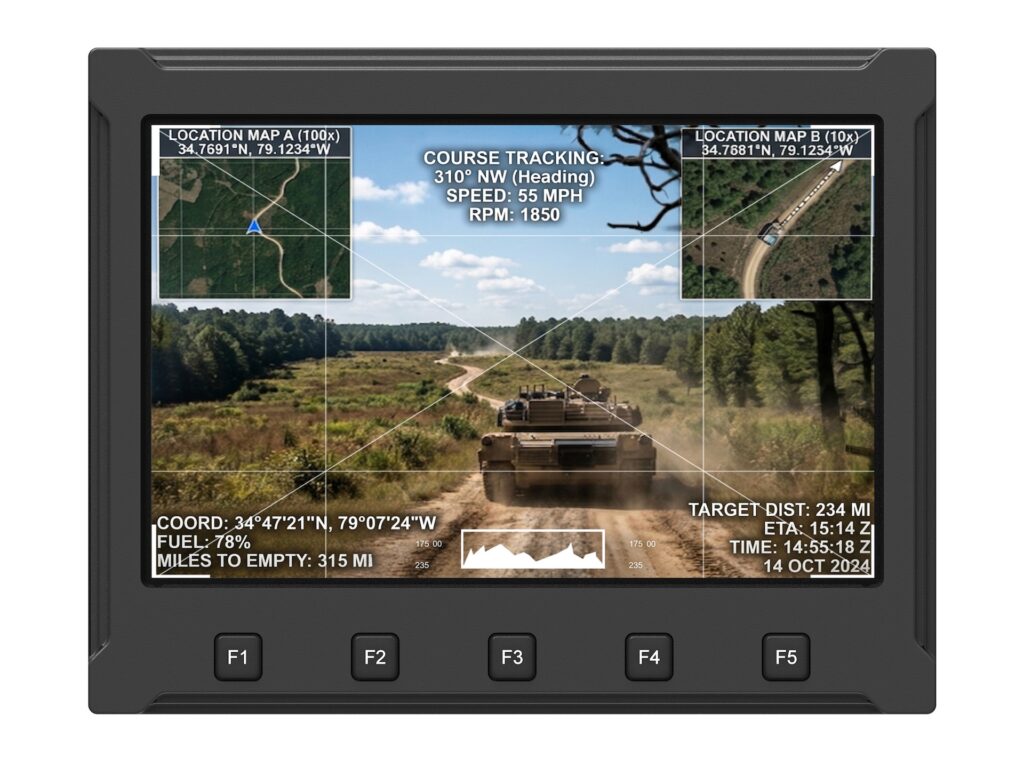

Cevians' 12.1" rugged display - SMART, designed with IPS LCD technology, excels in both performance and versatility. Its touchscreen and MMI with NVISable LEDs offer precise control, while the high resolution of 1200x800 ensures clear visuals. This display integrates essential components like power supply systems, signal conditioning, and EMI protections, supporting a wide range of video interfaces. Built to MIL-STD-810G
and MIL-STD-1275 standards, it withstands extreme conditions with an IP65 rating and operates from -40°C to +70°C.
Product Specifications
LCD technology
IPS LCD
Resolution
1200x800
Aspect Ratio
16:9
Orientation
Landscape
Viewing angle
85/85/85/85
Day mode Brightness
1000nits @ 17W
NVIS mode brightness
0.1 - 15 fL
Sunlight readable features
High-bright, Contrast-enhanced touchscreen, Anti-reflective, Anti-glare
Operating Temperature
-40°C to +70°C
IP rating
IP65
Touch screen technology
Microglass Resistive Multi-Touch
EMI
ITO
Heater
Optional
Internal sensors
Optional
Electronics
CPU i5-1235U
Memory RAM 16 GB
Removable SSD 256 GB
Multicommunication ports ETH 1 x Gigabit LAN
CANBus - SAE J1939,
1 x USB 3.0 Type-C & 1 x USB 2.0 Type-A
Impact resistance
20lb continuous load, 0.5m ball drop, 0.5m wrench impact, 1,500N boot kick
Input power
MIL-STD-1275E
Dimensions
12.1" x 9.5" x 2.5"
Mounting
VESA 100
HMI
5 Programable function keys
Touch Interface
USB
Video interface
HDMI
DP
DVI
VGA
Communication interface
I2C
USB
RS232

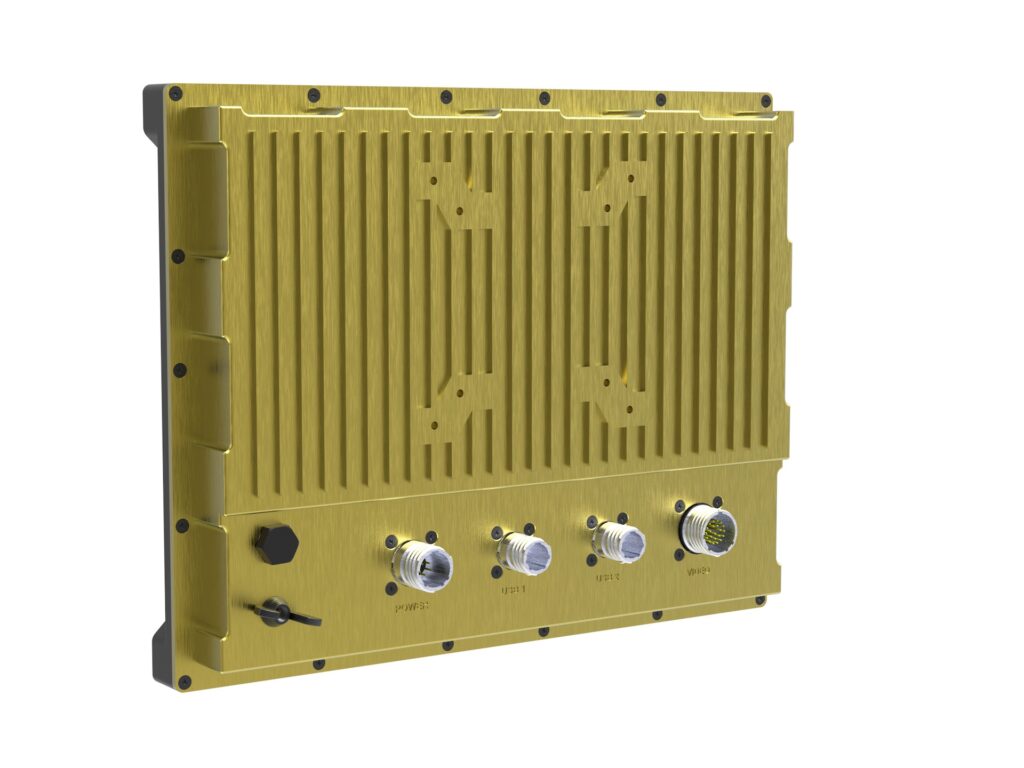

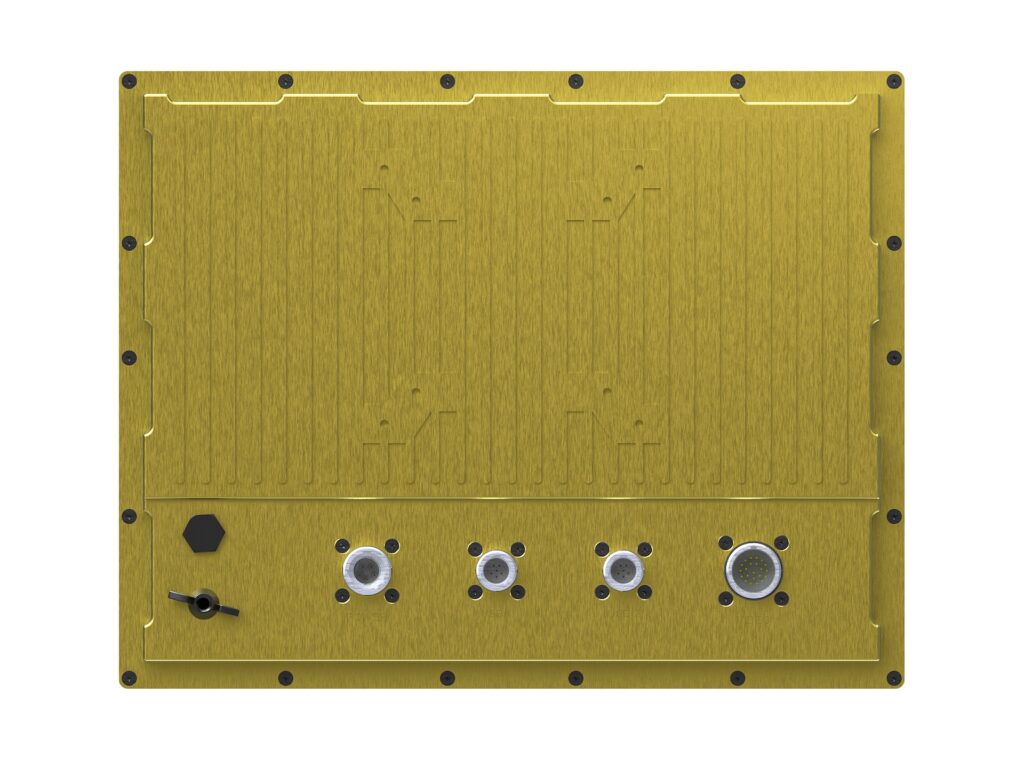

MIL-Spec connectors
Yes
