Industrial Displays
12.1"
Product Information

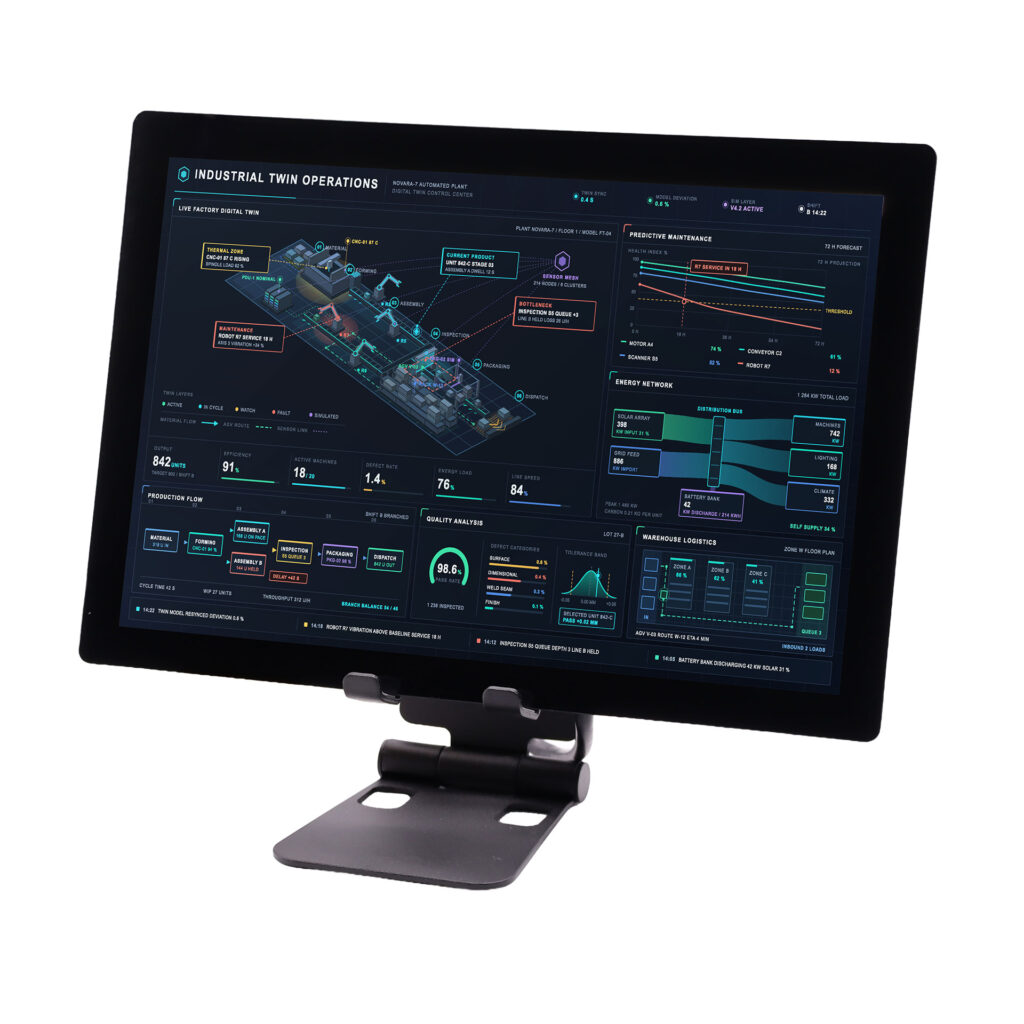

The 12.1” Full HD HDMI touch display, part of the Cevians family of advanced display products, is built for medical and industrial applications requiring clarity and reliability. Delivering 1280x800 resolution and high brightness for readability in challenging environments, it features HDMI input and a responsive touch interface. Easily customizable, it integrates options such as EMI shielding, heater glass, decorative glass, enclosures, and antireflective, antiglare, or oleophobic surface treatments for tailored performance.
Datasheet / 3D CAD Model
Product Specifications
Base Specifications
Display Diagonal Size
12.1”
HDMI technology
IPS / Normally Black / Transmissive
Touch screen technology
10 points projected capacitive
Resolution
1280x800
Aspect Ratio
8:5
Orientation
Landscape
Dimensions
298.24" x 26.50" x 200.32"
Viewing area
262.12mm (W) × 164.2mm (H)
Luminance
1800 (Typ.) cd/m2
Interface
Video HDMI
Touch: USB
Backlight: PWM
Power: USB
Operating Temperature
-30°C to +80°C
Enhanced Features
EMC Compliance
IEC 60601-1-2
IEC 61000-4-2 Electrostatic discharge (ESD)
IEC 61000-4-3 Radiated RF immunity
IEC 61000-4-4 / -4-5 / -4-6 Electrical fast transients, surges, and conducted RF immunity
CISPR11 Radiated Emissions
Sunlight readable features
Ultra Bright >2000 nits
Anti-Reflective
Anti-Glare
Optical Bonding
Ingress Protection (IP)
Watertight Sealed Design
Up to IP67 Rating
Coverglass Artwork
Black / White / PMS Color
Custom High Resolution Logo
Coverglass Impact / Shatter Proof
Impact Resistant
Laminated Glass
Chemical Strengthen Glass
Tempered Glass
Mounting
Bezeless/Front Glass Mount
VESA Standard
Bracket Mount (left-right, top-bottom)
Housing
Plastic Injection Molded
Powder Coated Metal
Painted Metal
Alternate Video Interface
Display Port (DP)
USB-C
Touch Sensitivity Tuning
Water Rejection
Glove Touch (Nitrile, Vinyl, Leather)
UV Protection
UV Films and Adhesives
UV Coatings
HMI
Rubber Keypad
Membrane Switch
Capacitive Keypad
